Stack Type Flexo Printing Machine For Pp Woven Bag

Stack Type Flexo Printing Machine For Pp Woven Bag

The Stack Type Flexo Printing Machine for PP Woven Bag is a modern printing equipment that has revolutionized the printing industry for packaging materials. This machine is designed to print high-quality graphics on PP woven bags with speed and accuracy.The machine uses flexographic printing technology, which involves the use of flexible printing plates made of rubber or photopolymer material. The plates are mounted on cylinders that rotate at high speed, transferring ink onto the substrate. The Stack Type Flexo Printing Machine for PP Woven Bag has multiple printing units that allow for the printing of multiple colors in a single pass.


  • MODEL: CH-P Series
  • Machine Speed: 120m/min
  • Number of printing decks: 4/6/8/10
  • Drive Method: Timing belt drive
  • Heat source: Gas, Steam, Hot oil, Electrical heating
  • Electrical supply: Voltage 380V. 50 HZ.3PH or to be specified
  • Main Processed Materials: PP woven bag
  • Product Detail

    Product Tags

    technical specifications

    Model CH4-600P CH4-800P CH4-1000P CH4-1200P
    Max. Web value 650mm 850mm 1050mm 1250mm
    Max. Printing value 600mm 800mm 1000mm 1200mm
    Max. Machine Speed                120m/min
    Printing Speed                100m/min
    Max. Unwind/Rewind Dia.                φ800mm
    Drive Type                Timing belt drive
    Plate thickness                Photopolymer plate 1.7mm or 1.14mm (or to be specified)
    Ink                Water base ink or solvent ink
    Printing length (repeat)                300mm-1000mm
    Range Of Substrates                LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon,PAPER,NONWOVEN
    Electrical supply                Voltage 380V. 50 HZ.3PH or to be specified

    Video Introduction

    Machine Features

    1. High Precision Printing: equipped with advanced technology and high-quality components, which help in achieving accurate and vibrant printing on woven bags.

    2. Variable printing speed: The printing speed of the machine can be adjusted according to the printing requirements, which offers greater flexibility during the printing process.

    3. High production capacity: PP woven bag flexo printing machines have a high production capacity, enabling the printing of large quantities of woven bags in a shorter time span.

    4.Low wastage: The PP woven bag Stack flexo printing machine consumes less ink and produces less wastage.

    5.Environmentally friendly: PP woven bag stack flexo printing machines use water-based inks and produce minimal waste, making them eco-friendly.

    Details Dispaly

    1
    2
    123
    4
    5
    6

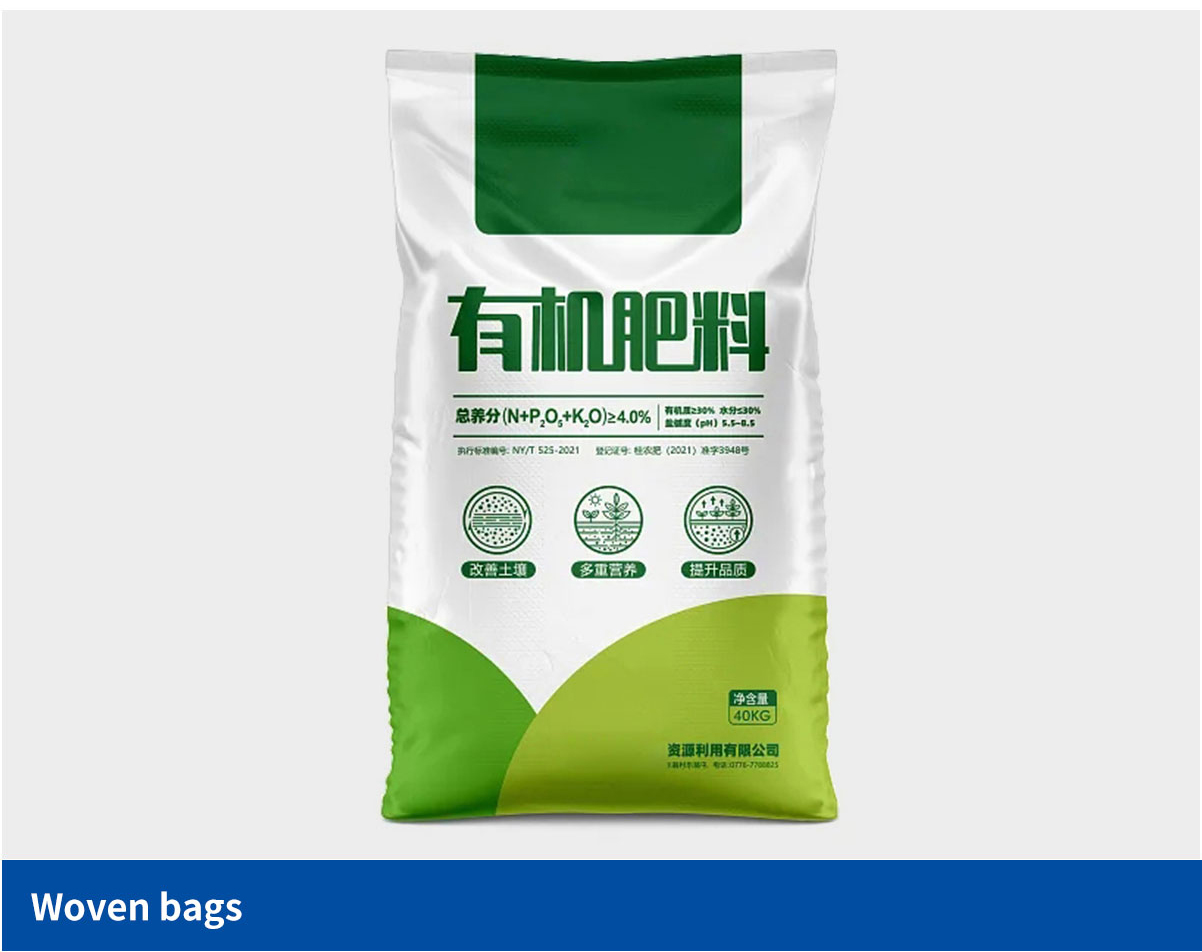

    sample

    1
    3
    2
    4

    Packaging and Delivery

    1
    3
    2
    4

    FAQ

    Q:What are the features of a PP woven bag stack flexo printing machine?

    A:The features of a PP woven bag stack flexo printing machine typically include an advanced PLC control system, servo motor control, automatic tension control, automatic register system, and more. These features ensure high precision and quality printing.

    Q: How does a PP woven bag stack flexo printing machine print on bags?

    A:A PP woven bag stack flexo printing machine uses specialized ink and a printing plate to transfer the desired image or text onto the PP woven bags. The bags are loaded onto the machine and fed through rollers to ensure the ink is evenly applied.

    Q: What maintenance is required for a PP woven bag stack flexo printing machine?

    A:Maintenance requirements for a PP woven bag stack flexo printing machine typically include regular cleaning and lubrication of moving parts, as well as periodic replacement of wear and tear components, such as printing plates and ink rollers.
