Slitter stack Flexo printing press

The slitter stack flexo printing press is an essential piece of equipment in the printing industry that allows for fine and intricate printing on a variety of materials。Its unique slitting function stack design combines the high precision of flexographic printing with the flexibility of modular production, which can meet diverse printing needs, and is especially suitable for the integrated production process of multi-color printing and in-line slitting processing

MODEL: CH6-600N,CH6-800N,CH6-1000N,CH6-1200N

Machine Speed: 120m/min

Number Of Printing Decks: 4/6/8/10

Drive Method: Gear drive

Heat Source: Gas, Steam, Hot oil, Electrical heating

Electrical Supply: Voltage 380V. 50 HZ.3PH or to be specified

Main Processed Materials: Films; Paper; Non-Woven;Paper cup

Send email to us Download as PDF

Product Detail

Product Tags

technical specifications

Model	CH6-600N	CH6-800N	CH6-1000N	CH6-1200N
Max. Web Width	600mm	850mm	1050mm	1250mm
Max. Printing Width	550mm	800mm	1000mm	1200mm
Max. Machine Speed	120m/min
Printing Speed	100m/min
Max. Unwind/Rewind Dia.	φ800mm
Drive Type	Gear drive
Plate thickness	Photopolymer plate 1.7mm or 1.14mm (or to be specified)
Ink	Water base ink or solvent ink
Printing length (repeat)	300mm-1000mm

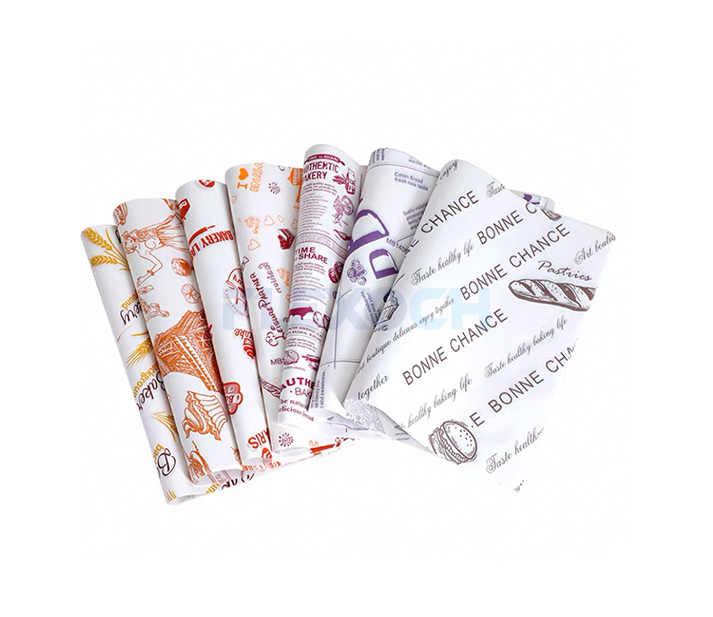

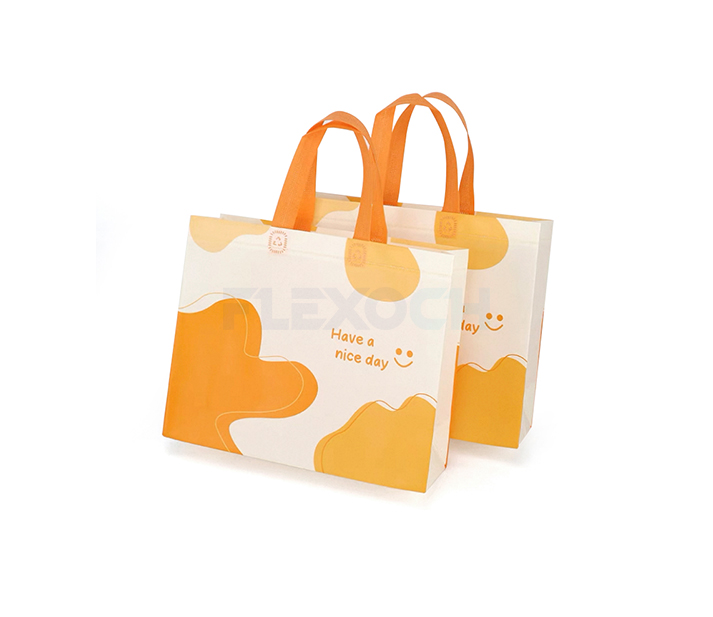

Range Of Substrates	PAPER, NONWOVEN,PAPER CUP
Electrical supply	Voltage 380V. 50 HZ.3PH or to be specified

Video Introduction

Machine Features

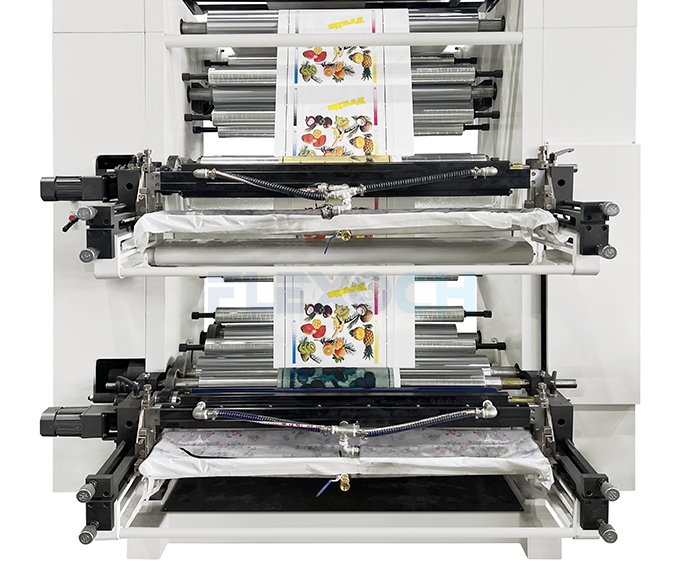

● Modular stacking design: The slitter stack flexo printing press adopts a stacking layout, supports simultaneous printing of multiple color groups, and each unit is independently controlled, which is convenient for fast plate changing and color adjustment. The slitter module is integrated at the back end of the printing unit, which can directly and accurately slit the roll material after printing, reducing the secondary processing link and significantly improving production efficiency.

● High-precision printing and registration:The slitter stack flexo printing press uses a mechanical transmission system and automatic registration technology to ensure stable registration accuracy to meet the needs of conventional to medium-fine printing. At the same time, it is compatible with water-based inks, UV inks and solvent-based inks, and is suitable for a variety of substrates.

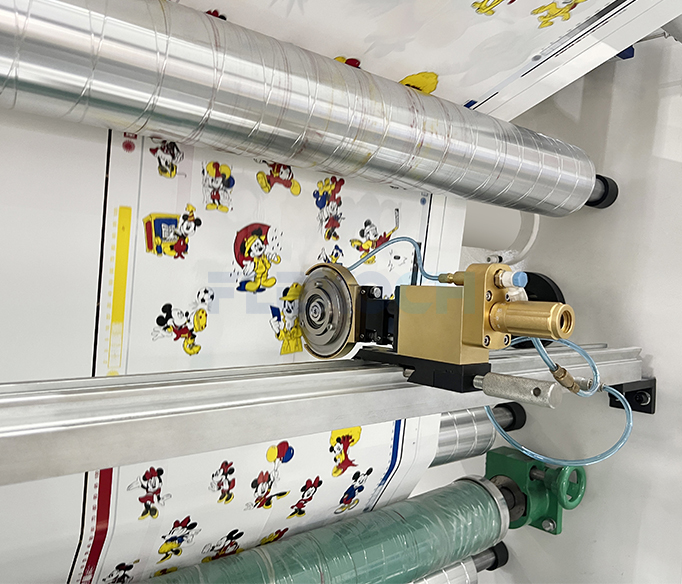

● In-line slitting technology:The slitter stack flexo printing machine is equipped with a CNC slitting knife group, which supports multi-roll slitting. The slitting width can be programmed through the human-machine interface, and the error is controlled within±0.3mm. Optional tension control system and online detection device can ensure the smooth slitting edge and reduce material loss.
